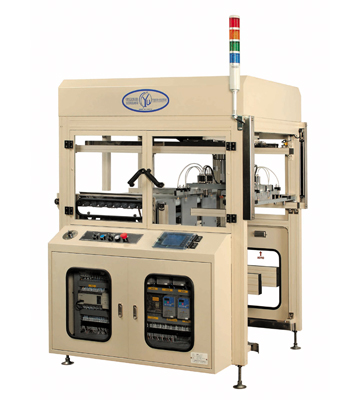

HTC-950-L-C LOADER / UNLOADER
Application Process：Inner Layer Pre-treatment System, Horizontal Brown Oxide System, AOI, Etching, PP Punching Holes, Copper Reduction Line, Belt Grinding Brush, D.E.S., Horizontal Plating, Plates Grinding Brush, PTH, Copper Systrm…etc.
| Utility systems and consumption | Characteristics : | |||
| Working Height : 950 mm (Changeable) | Horizontal job (cast plate, take the plate) | |||
| Use of electricity : 220V 60Hz 4KW 16A | Thin PCB work 0.07mm | |||
| Air Pressure Capacity : 5KG | Transfer mechanism: adopt a single rod simple harmonic motion, moving really fast and smooth, simple structure and long life | |||
| Air Consumption : 50L/min | Matching process to follow: Center clappers or sequential function | |||
| Working Thickness : 0.07~3.2 mm | Matching process to follow: BOX sucker adsorption or absorption | |||
| Speed : 0~8.5 M/min (Changeable) | ||||
| Working Range : 250x300~510x610 mm | ||||
